Height calibration

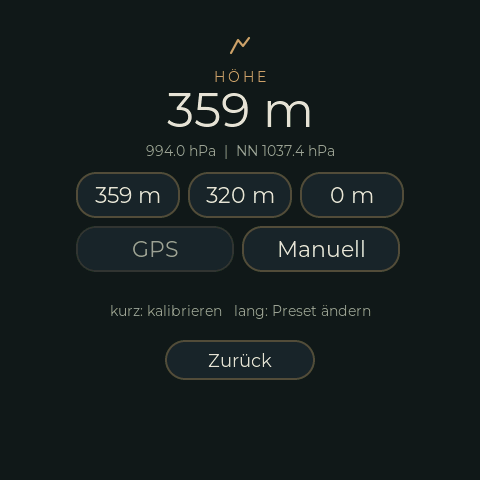

Height page

The BME280 measures air pressure; the height is derived from it and a reference pressure at sea level (QNH). Weather changes that pressure, so the height drifts and has to be set again now and then at a place whose height you know. Settings → Höhe:

Button Does
Three presets (default 359 m, 320 m, 0 m) Tap: calibrate to the preset height. Long press: change the preset (number entry).
GPS Calibrates to the height above sea level of TrailBridge's GPS fix. Greyed out without a current fix. A phone GPS is only good to about 10 m vertically -- a rough start, not a replacement for a known place.
Manuell Number entry: the known height (m), or switch to the reference pressure at sea level (hPa, 850 to 1090), e.g. from a weather report.

The page shows the height, the measured pressure and the reference pressure. The result of the last action stays on the line below the buttons for a few seconds.

Web page

/sensor/ has the same: the presets (button and field to change), GPS, a known height and a reference pressure. The routes also work for scripts (GET, answer OK or the reason):

/sensor/cal?preset=0..2     /sensor/cal?gps=1
/sensor/cal?height=<m>      /sensor/cal?qnh=<hPa>
/sensor/preset?i=0..2&height=<m>

Notes

  • Reference pressure and presets are stored as one NVS blob (Sensors/HeightCal), written by the next BME280 cycle, not by the caller. An older single value (RefPressure) is still read.
  • GPS height needs the tag MSL_ALTITUDE_DM (0x0E) of the protocol and Android 14 or later on the phone. ALTITUDE_M is above the ellipsoid (about 47 m off in Germany) and is not used. Made-up positions (GPX test ride) are refused.
  • Code: I2CSensors::calibrateHeight() and friends, display src/ui/RimRidgeAltCustFunc.* (EEZ pages RimRidgeSettingsAlt, RimRidgeSettingsNum), web routes in src/WifiWebserver.cpp.
