TrailBridge is the Android companion app of the bike computer. It passes navigation, GPS position and the elevation profile of the next climb to the bike computer over BLE -- as a replacement for Komoot's discontinued BLE navigation service.

TrailBridge main page

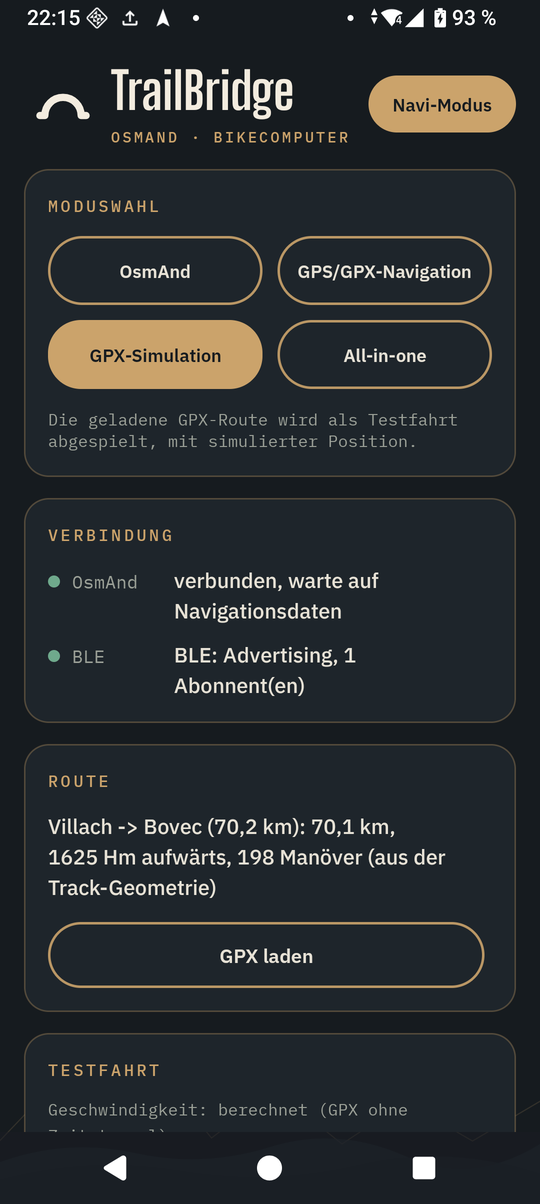

Mode, connection, route

TrailBridge test ride

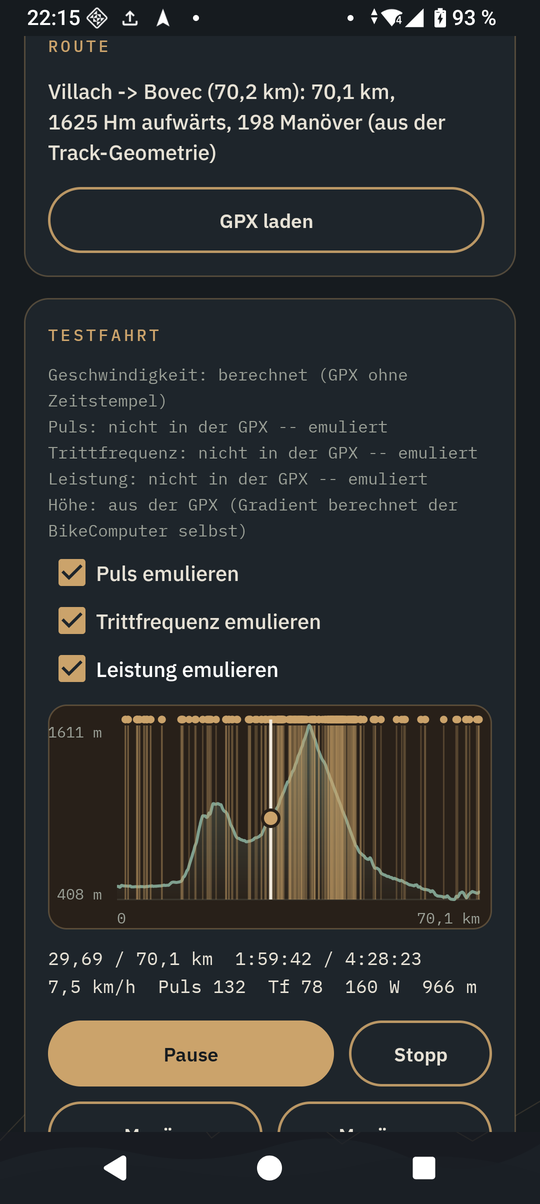

Test ride

TrailBridge navi mode

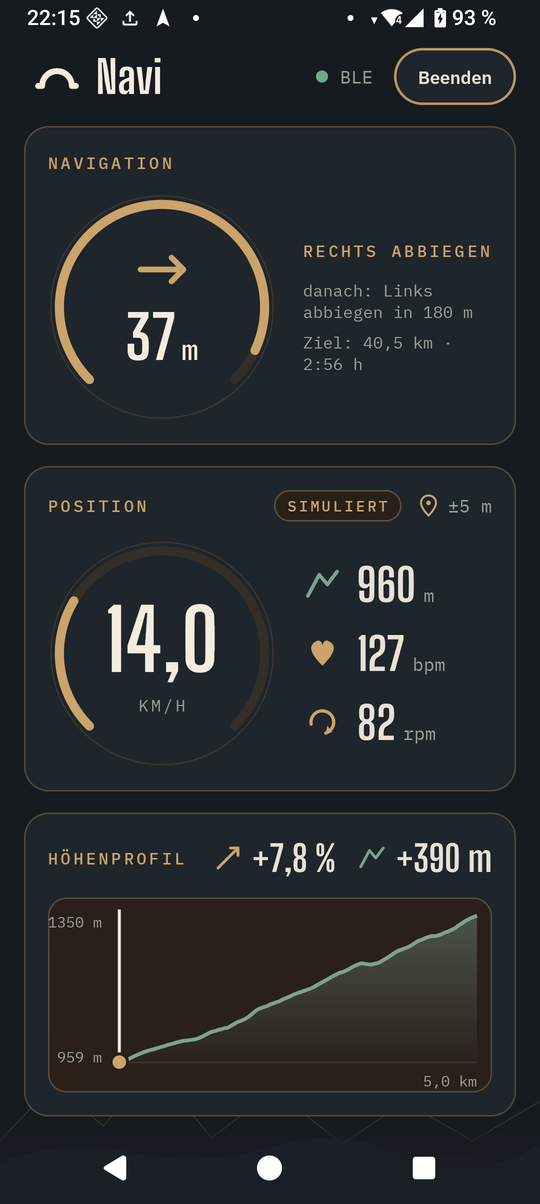

Navi mode

The app's texts are German.

What it does

  • Navigation from OsmAnd: reads OsmAnd's turn-by-turn navigation through its AIDL API (maneuver, street names, the maneuver after next, lanes, remaining distance and time) and sends it as a compact TLV protocol over BLE -- see the BLE protocol.
  • GPS position: a second, independent BLE service with the phone's raw GPS position, straight from the GPS chip. It works without OsmAnd, goes into the bike computer's ride log and sets its clock when there is no WiFi.
  • GPX routes: open, share or load a GPX file and start the route -- TrailBridge then navigates itself (GPS position matched onto the route, no OsmAnd needed) and sends the same navigation frames. Turn hints come from the file (rtept, OsmAnd route segments), otherwise from the geometry of the track.
  • Climbs: if the route has elevation data, the elevation profile of every climb goes out shortly before it (500 m before its foot), up to the summit -- also for long passes in one piece. The bike computer shows it on its climb screen.
  • Test ride: the loaded GPX route can be "played" for testing. TrailBridge then sends a made-up position along the route instead of the real one -- with a matching speed (from the GPX timestamps, otherwise computed: slower uphill, faster downhill, careful in bends), heart rate, cadence and power (from the GPX, otherwise emulated on request) and the altitude of the route. An elevation profile with maneuver markers lets you jump back and forth. Only the bike computer's simulator build evaluates the sensor values; they are marked as simulated in the protocol.
  • Navi mode: a reduced screen for the road -- only navigation, position and, while one has been sent to the bike computer, the elevation profile of the climb ahead. The screen stays on.

Modes

Mode What runs
OsmAnd navigation from OsmAnd, real GPS position
GPS/GPX navigation TrailBridge navigates along the loaded GPX route, real GPS position
GPX simulation the loaded GPX route is played as a test ride with a simulated position
All-in-one everything on one screen: OsmAnd, GPX navigation and simulation

Getting started

  1. Install OsmAnd and load an offline map for your area.
  2. Install TrailBridge (releases) and open it. The status shows that it is not enabled in OsmAnd yet.
  3. In OsmAnd: Menu > Plugins > TrailBridge > enable.
  4. Back in TrailBridge the status becomes "verbunden, warte auf Navigationsdaten" (connected, waiting for navigation data).
  5. Start a route in OsmAnd -- or load a GPX file in TrailBridge and start it there.

The bike computer finds TrailBridge by itself: it scans for the navigation service and connects to the first phone that advertises it.

Test ride

  1. Load a GPX file and open the test ride panel with the elevation profile.
  2. It shows where speed, heart rate and cadence come from (the GPX or not available); where they are missing, they can be emulated with a checkbox.
  3. "Abspielen" (play) starts the ride at the beginning or at the position chosen last; navigation starts by itself. Tapping or dragging in the elevation profile jumps to that place, "« Manöver" / "Manöver »" jumps 400 m before the previous/next maneuver. "Stopp" ends the test ride, the real GPS fix applies again.
  4. It runs in real time.

Without a bike computer the BLE part can be checked with any BLE scanner app, e.g. nRF Connect -- UUIDs and frame format are in the BLE protocol.
